Operational and information management complex SCADA«D2»
» SCADA D2″, hereinafter the complex, is an integrated complex of specialized system, application, library, tool and service software (software), as well as software tools of the database management system (DBMS). It runs on the Windows OS platform.
The complex is designed for dispatching control of energy facilities in normal and
emergency mode, organizational and technological maintenance, for communication with the upper ones
hierarchy levels in the power system, as well as for processing, documenting and archiving mode parameters and technological process data. The complex allows for remote control of the entire serviced electrical network.
The complex can be installed both on newly constructed facilities and on existing facilities through the replacement and reconstruction of existing control and management facilities.
The complex performs the following functions:
— reception of telemetric and other operational information according to standard data transfer protocols IEC 870-5-101, IEC 870-5-104, Modbus (RTU, ASCII, TCP/IP), ICCP (OPC server), which allows receiving data from various telemechanics devices and other software complexes;

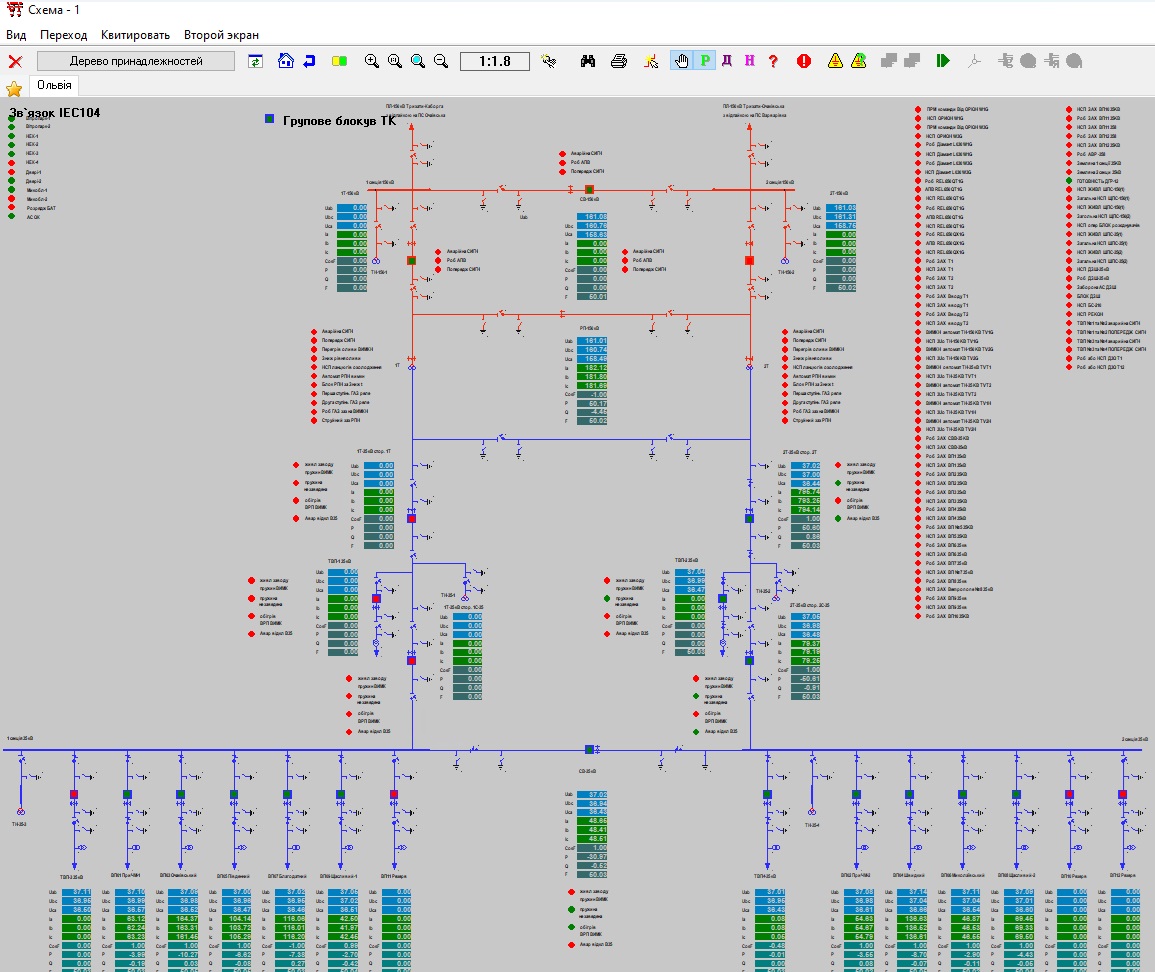

— display of telemetric and other operational information on mnemonics, in tabular and graphic form;
— translation of telemetry and telesignals to manual control and back;
— Flowering of television signals;
— installation and removal of posters on mnemonics;
— Printing of mnemonics and graphs;
— saving the information received in the Database (maintenance of an archive with the assignment of a time stamp with an accuracy of up to 1 ms), with the possibility of analyzing and viewing the saved data;
— the possibility of building a distributed multi-machine complex with full hot redundancy;
— keeping a log of user actions and system operations;
— management of the control panel display system, which allows outputting telemetric information, manual input information and receipt commands to telesignaling indicators;
— issuance of commands for remote control of the state of high-voltage switching equipment at substations;
— Operational monitoring of state parameters of controlled electrical networks;
— Defining the topology of the network model.

The following software is required for the SCADA software «DK D2» to function:
• Operating system:
⇒ Microsoft Windows 2008 Server — 2025 Essentials (SCADA server)
⇒ Microsoft Windows 7/8/8.1/10 (operator’s workstation);
• Database
⇒ Microsoft SQL Server 2005 — 2022 Standard Edition
Microsoft Office Excel 2016 software (for entering planned data and generating reports)

When using higher versions of application software, the operability of the SCADA software «DK D2» is not guaranteed!

Note: To protect the server and client workstations from virus threats and
to ensure data security, it is recommended to install antivirus software.

Server hardware:

Supermicro SYS-541R-TR
19″ 4U Chassis CSE743, Intel C262, CPU Intel Xeon
E-2468 Raptor Lake, 10 nm, 8×2.6GHz, HT, Turbo Boost
5.2GHz, 65W
RAM 2x16GB DDR5 ECC
HDD 2*6TB RAID 1, Boot SSD NVMe M.2 512GB
2xGigabit Eth, IP KVM
Single Power Supply
Rack mount kit SC742

Required to use USB activation key for SCADA software «DK D2»

Made in Ukraine
